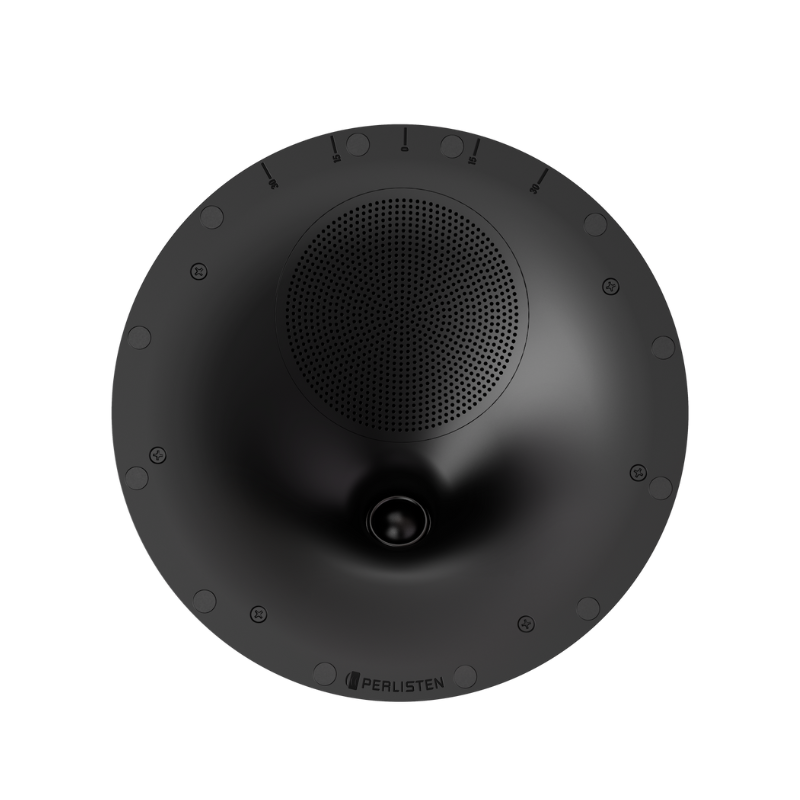

PERLISTEN R3ic崁頂式揚聲器
Who says in-ceiling speakers are always a compromise? The R3ic is the perfect in-ceiling match for any R-Series Home Theater, where sacrifices to the perfect audio experiences are unacceptable, and perfection is the only path forward. Patent pending design, with directivity control derived from our DPC, creating a frequency response that matches world class speakers.
Featuring the same Silk dome tweeter and midrange, with our custom paper pulp 6.5” woofers as our R-Series in-walls and highly regarded in-room speakers. This enables a flat frequency response angled for 30-degree main listening window with off axis and power response to match our in-wall R-Series speakers for flawless timber matching needed for true immersive audio. A solid 4mm thick aluminum back box for consistent sound with limited sound transmission into other rooms. This ability to be used not only for in-ceiling surround but in-ceiling LCR or in-wall wide speakers and THX Certified Dominus for surrounds. Better coverage for even response across more seats with no compromises!
SPECIFICATIONS
Enclosure Alignment | 3-way acoustic suspension |
Driver compliment | DPC Array: 28mm silk dome tweeter 28mm silk dome mid Woofers: 165mm Alum frame, HPF pulp |
Sensitivity | 88.8dB / 2.83v / 1.0m |
Impedance | 4Ω nominal / 3.0Ω min |

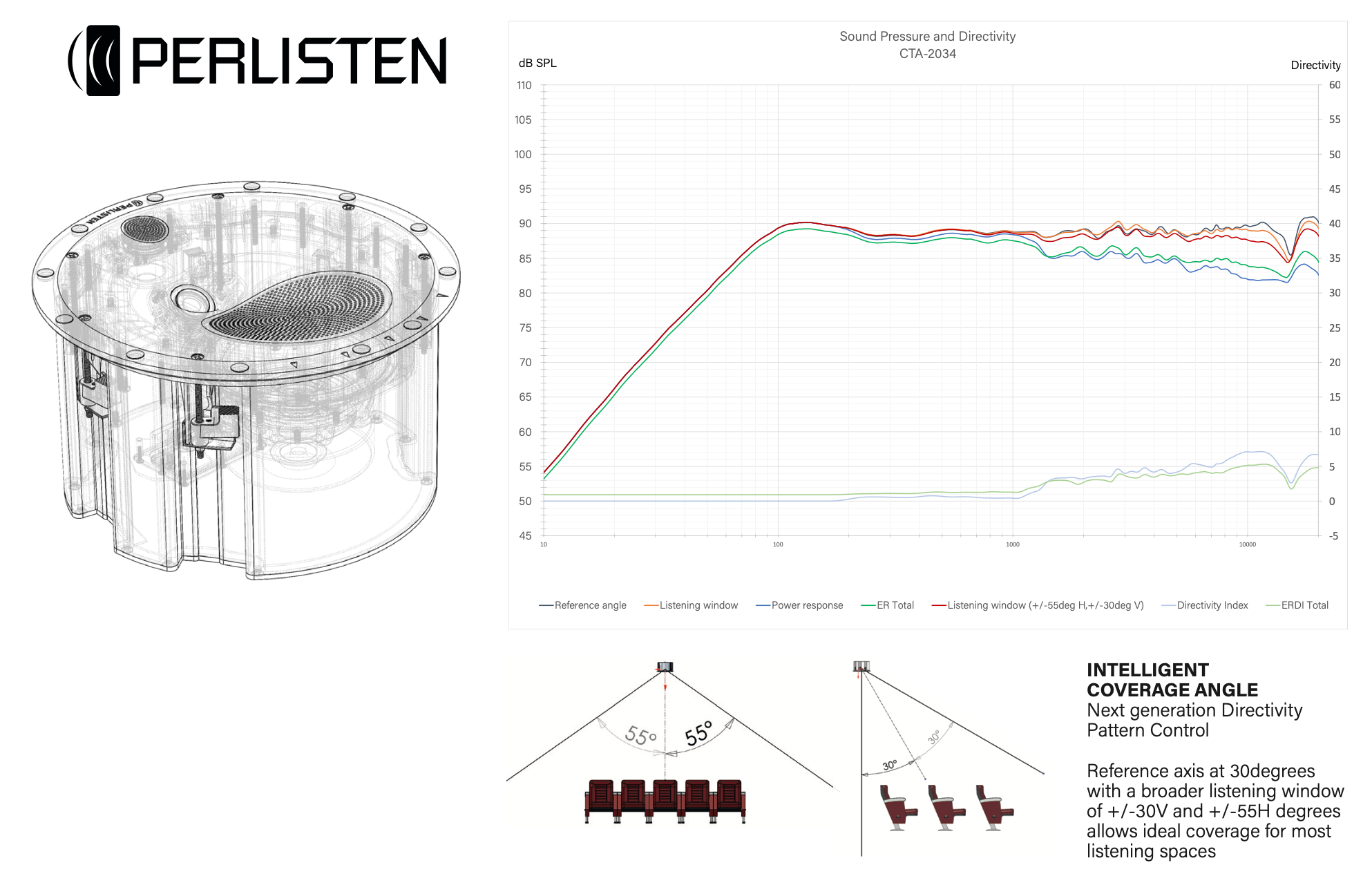

Listenting Window (from 30deg Ref) | Horizontal: +/-55 deg Vertical: +/-30 deg |
Response Linearity | 100 – 20kHz +/-1.5dB window |
Frequency Response | 59 – 30kHz (-6dB) 46 – 33kHz (-10dB) |
Typical In Room bass extension | 51 Hz (-6dB) 36 Hz (-10dB) |

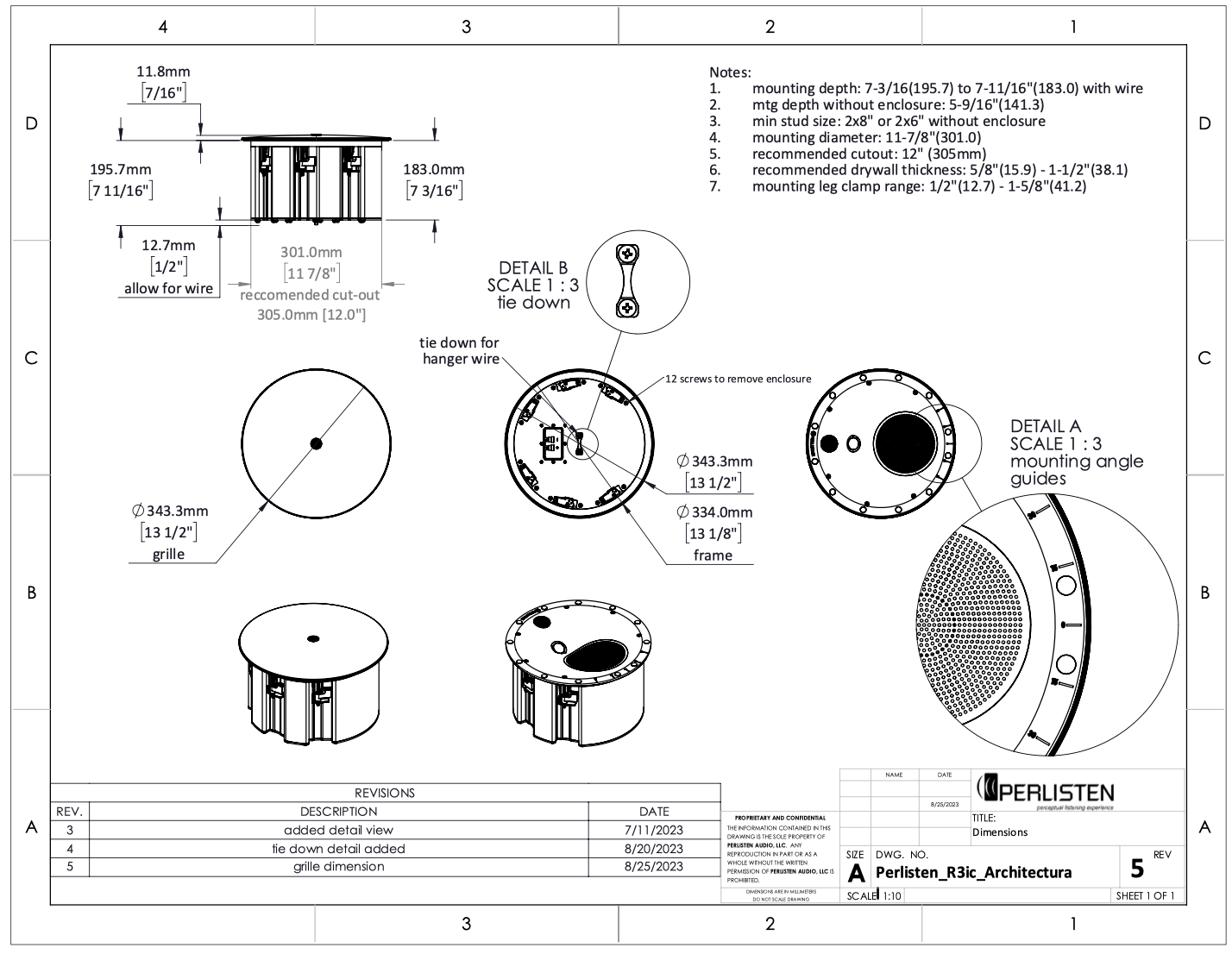

Overall Dimensions (with grille) | 343.3 diam x 194.8mm depth 13.5″ diam x 7.7″ depth |
Recommended cutout | 305mm diameter 12″ diameter |
Weight | 20.4lbs. (9.4kg) 11.8lbs. (5.4kg) without enclosure |
Recommended Amplifier Power | 50 – 200W (with 80Hz HPF) 50 – 125W (full range) |
SPL capability @1m (100-20kHz) | 111.8dB peak 111.0dB peak <3% 2nd, 3rd Harmonics |
Certification | THX Dominus, THX Ultra |
